Bootstrap 5 Password Strength Meter

by
Bootstrap 5 Password Strength Meter
Code Snippet:Password Strength Meter (Vanilla JS)
Author: Marcus
Published: January 19, 2024
Last Updated: January 22, 2024
Downloads: 4,873
License: MIT
Edit Code online: View on CodePen
Read More
 Demo
Download (File not found!)

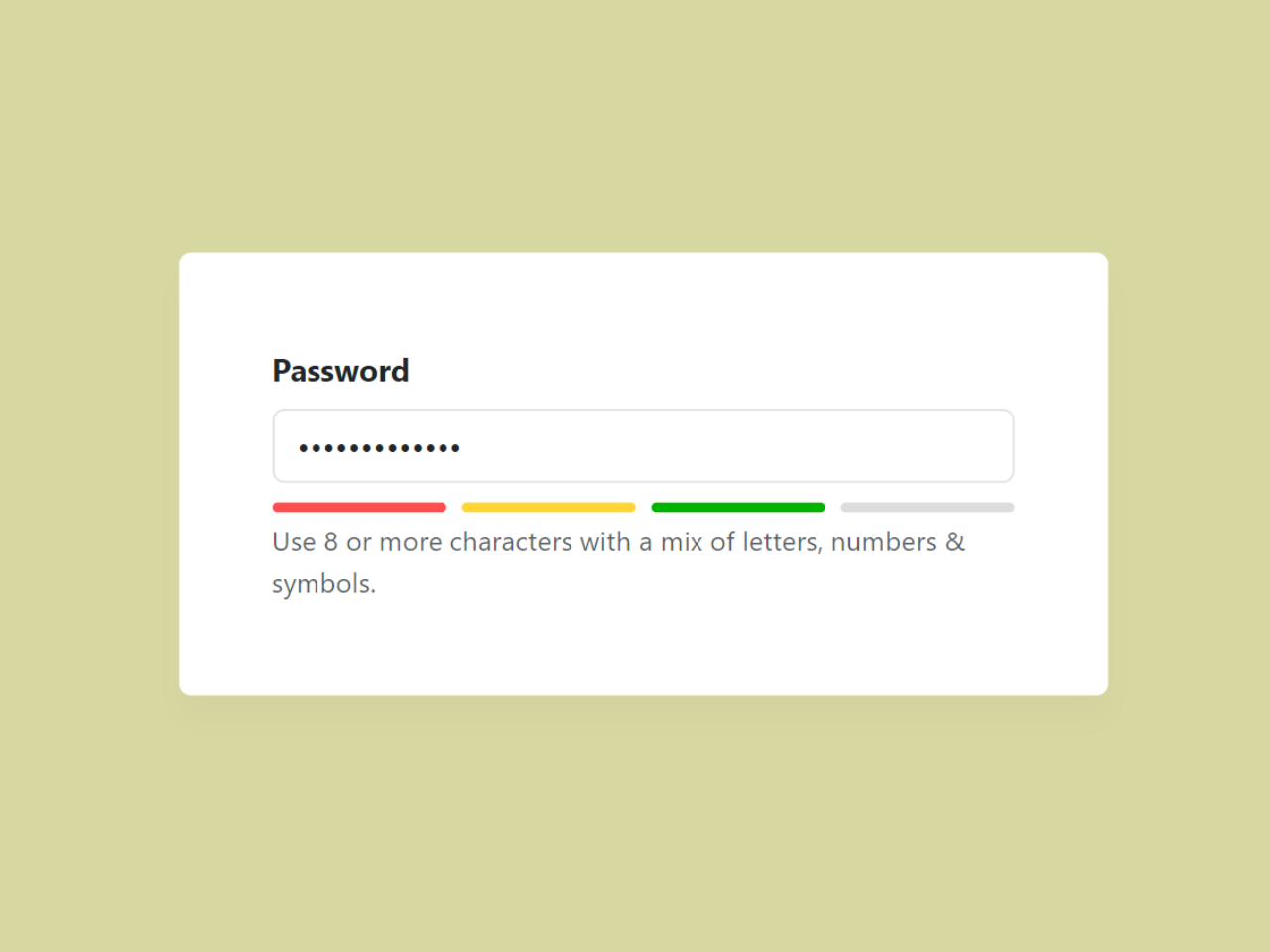

This Bootstrap 5 code snippet helps you to create a password input field with a strength meter. It visually indicates password strength. It assesses the password’s complexity and uses color-coded meter sections to show strength levels, helping you create more secure passwords effortlessly.

You can implement this code in the password input field of your registration or sign-up forms to encourage users to create strong passwords when creating accounts.

How to Create Bootstrap 5 Password Strength Meter

1. First, make sure to include the Bootstrap 5 CSS and JavaScript libraries by adding the necessary CDN links to your HTML header.

  1. <link rel='stylesheet' href='https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/css/bootstrap.min.css'>
  2. <script src='https://cdn.jsdelivr.net/npm/@popperjs/core@2.11.8/dist/umd/popper.min.js'></script>
  3. <script src='https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/js/bootstrap.min.js'></script>

2. Now, add the HTML structure to your web page. The following code demonstrates how to set up a simple password input field with the strength meter:

  1. <body class="container-fluid bg-body-tertiary d-block">
  2.     <div class="row justify-content-center">
  3.         <div class="row justify-content-center">
  4.             <div class="col-12 col-md-6 col-lg-4" style="min-width: 500px;">
  5.                 <div class="card bg-white mb-5 mt-5 border-0" style="box-shadow: 0 12px 15px rgba(0, 0, 0, 0.02);">
  6.                     <div class="card-body p-5">
  7.
  8.                         <label for="password-input" class="form-label fw-bold">Password</label>
  9.                         <input type="password" class="form-control" id="password-input" autocomplete="off"
  10.                                aria-autocomplete="list"
  11.                                aria-label="Password" aria-describedby="passwordHelp">
  12.                         <div class="password-meter">
  13.                             <div class="meter-section rounded me-2"></div>
  14.                             <div class="meter-section rounded me-2"></div>
  15.                             <div class="meter-section rounded me-2"></div>
  16.                             <div class="meter-section rounded"></div>
  17.                         </div>
  18.                         <div id="passwordHelp" class="form-text text-muted">Use 8 or more characters with a mix of
  19.                             letters, numbers &
  20.                             symbols.
  21.                         </div>
  22.                     </div>
  23.                 </div>
  24.             </div>
  25.         </div>
  26.     </div>
  27. </body>

3. Add the following CSS code to style the password strength meter. This code defines the appearance of the meter sections and differentiates them based on strength.

  1. .password-meter {
  2.     display: flex;
  3.     height: 5px;
  4.     margin-top: 10px;
  5. }
  6.
  7. .meter-section {
  8.     flex: 1;
  9.     background-color: #ddd;
  10. }
  11.
  12. .weak {
  13.     background-color: #ff4d4d;
  14. }
  15.
  16. .medium {
  17.     background-color: #ffd633;
  18. }
  19.
  20. .strong {
  21.     background-color: #00b300;
  22. }
  23.
  24. .very-strong {
  25.     background-color: #009900;
  26. }

4. To make the password strength meter functional, add the following JavaScript code. This code calculates the strength of the entered password and updates the meter sections accordingly.

  1. const passwordInput = document.getElementById('password-input');
  2. const meterSections = document.querySelectorAll('.meter-section');
  3.
  4. passwordInput.addEventListener('input', updateMeter);
  5.
  6. function updateMeter() {
  7.     const password = passwordInput.value;
  8.     let strength = calculatePasswordStrength(password);
  9.
  10.     // Remove all strength classes
  11.     meterSections.forEach((section) => {
  12.         section.classList.remove('weak', 'medium', 'strong', 'very-strong');
  13.     });
  14.
  15.     // Add the appropriate strength class based on the strength value
  16.     if (strength >= 1) {
  17.         meterSections[0].classList.add('weak');
  18.     }
  19.     if (strength >= 2) {
  20.         meterSections[1].classList.add('medium');
  21.     }
  22.     if (strength >= 3) {
  23.         meterSections[2].classList.add('strong');
  24.     }
  25.     if (strength >= 4) {
  26.         meterSections[3].classList.add('very-strong');
  27.     }
  28. }
  29.
  30. function calculatePasswordStrength(password) {
  31.     const lengthWeight = 0.2;
  32.     const uppercaseWeight = 0.5;
  33.     const lowercaseWeight = 0.5;
  34.     const numberWeight = 0.7;
  35.     const symbolWeight = 1;
  36.
  37.     let strength = 0;
  38.
  39.     // Calculate the strength based on the password length
  40.     strength += password.length * lengthWeight;
  41.
  42.     // Calculate the strength based on uppercase letters
  43.     if (/[A-Z]/.test(password)) {
  44.         strength += uppercaseWeight;
  45.     }
  46.
  47.     // Calculate the strength based on lowercase letters
  48.     if (/[a-z]/.test(password)) {
  49.         strength += lowercaseWeight;
  50.     }
  51.
  52.     // Calculate the strength based on numbers
  53.     if (/\d/.test(password)) {
  54.         strength += numberWeight;
  55.     }
  56.
  57.     // Calculate the strength based on symbols
  58.     if (/[^A-Za-z0-9]/.test(password)) {
  59.         strength += symbolWeight;
  60.     }
  61.
  62.     return strength;
  63. }

That’s it! You’ve successfully implemented a Password Strength Meter. This tool enhances user security by guiding them to create stronger passwords. Feel free to customize the CSS styles to match your project’s design.
